Informasi Alat
| Nama Alat | Sontek River Surveyor |
|---|---|

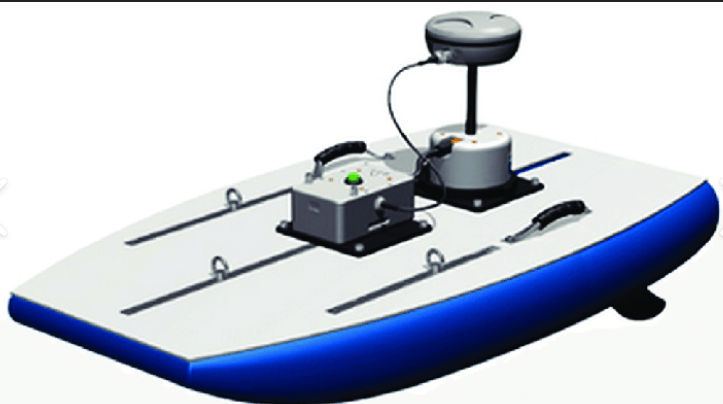

| Deskripsi Alat | Suatu alat untuk mengukur arus air, penampang melintang sungai, dan debit di sungai serta di muara - RiverSurveyor M9- Portable nine-beam 3.0 MHz/1.0 MHz/0.5 MHz acoustic Doppler profiler/discharge measurement system intended for use from moving boats and other floating platforms in medium depth channels. System is provided in a 5 inch (13 cm) diameter Delrin housing and consists of a dual Janus configuration with four 3.0 MHz and four 1.0 MHz transducers for velocity measurement, one 500 kHz vertical acoustic beam for depth measurement, compass/2-axis tilt sensor, temperature sensor, and 16 GB recorder. Features bottom tracking, internal discharge calculation, RiverSurveyor Live! Windows software for real-time display of current profiles, water depth and computed discharge measurements, DGPS GPS interface. System also includes a power supply and plastic shipping case. - 10-m power & RS232 serial communications cable, compact 8-pin male wet-pluggable to 9-pin D-sub - Sontek PCM 3 - 2.4 GHz Telemetry / External Power / SonTek DGNSS Multiconstellation Module for remote data collection. Consists of Rover Unit in a waterproof enclosure containing a 2.4 GHz radio, GNSS receiver/antenna, (16) AA alkaline batteries, a 1m cable for connection to the S5 or M9, and a 2.4 GHz USB radio for connecting to a customer-supplied computer. Also includes applicable mounting hardware/adapters and cables. - Standard Torrent Board V7 for use with Riversurveyor M9 – RqPOD ready, includes 1FCS fin key, 2 FCS fins, windsock, lanyards with shackle for tethered deployments and rucksack carry bag. |
| Preparasi Sample | - |
| Lokasi | Lab Teknik Kelautan FTSL, ITB Kampus Jatinangor |
| PIC | Dr. Eng. Hendra Achiari, ST. MT. |
| Status | Active : Penggunaan Alat dapat dilakukan oleh semua users. |
| Waktu Penggunaan Alat | Per-jam |
